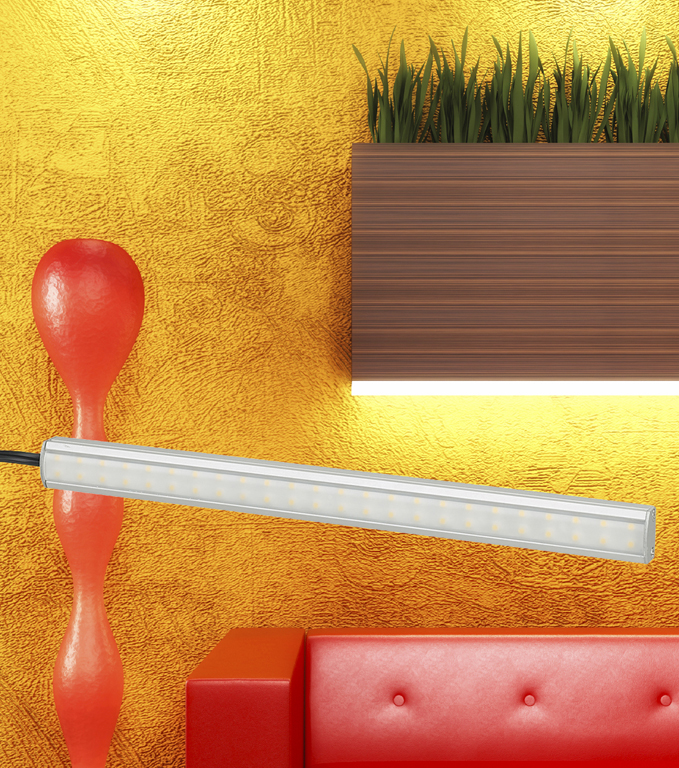

Light StripzT Linear LED Engines for Retrofits and New Designs

LED Strip Light Options by American Illumination, Inc.

Just in time for Lightfair, American Illumination's Light StripzT are the ideal LED solution for lighting designers, electrical contractors, showrooms, distributors and manufacturers. Light StripzT features a sleek, watertight body with the look of a finished luminaire.

The Light StripzT (LS)are offered in 3" to 72" lengths. They are ideal for step lights, sconces, retail/display lighting, border/perimeter lighting, backlighting, furniture lights and more. Lighting designers incorporate Light Stripz for a variety of applications due to the low energy consumption, multiple CCT and voltage options, and various levels of output.

Sleek Design, Multiple Lengths and Easily Retrofitted

Perfect for outdoor step lights or indoor runs of cove lighting, the Light StripzT come in lengths from 3" to 72". All linear Stripz have a narrow width under 1.25", thus making the LS series great for slim fixtures and small to large installation locations. While the standard lead wire is excellent for Title 24 solutions, the Stripz can be easily retrofitted for T8 applications; end pieces can be fitted directly into the fluorescent socket and the flat diffuser can be replaced with a semi-circle one to resemble the T8 look. The LSS model is a rectangular LED array geared toward step light retrofits.

All-in-One Indoor/Outdoor Solution and Self-Ballasted Too!

For specifiers and contractors, Light StripzT is a hassle-free lighting solution. They are safe to install indoors or in sealed outdoor landscape fixtures; the potted LED compartment prevents moisture from disturbing the performance of the Stripz in most environments. The self-ballasted Light StripzT include various features such as an internal constant current driver, customizable 120° diffuser and integrated heat sink that limits the user's need to purchase additional components for the system.

Designer Friendly with Multiple CCT's and Dimmable

No matter where they are installed - a restaurant, bar, office, residence, displays, or even signage, American Illumination has the color to match the décor. Light StripzT are offered with various Correlated Color Temperatures (CCT), two different LED types, and are dimmable from 0-100%. White colors include Warm White (3000K), Natural White (4000K), and Cool White (6000K), while single colors such as Red, Blue, Green, or Amber are also available. Standard Light StripzT feature the ultra-efficient 3528 SMD LED's, while users can upgrade to the higher output 5252 SMD LED models if more "punch" is needed. Dimmers will allow dimming from 0-100% which is great for mood lighting interior/residential applications.

Easy Installation for the Novice to the Artist

The Light StripzT are easy to install and combine, either in parallel or daisy chained and are the perfect solution for indoor or outdoor linear surfaces. Complete plug-and-play systems are available with end-to-end male-to-female connectors and include a lead and terminal unit. The sleek look, low-profile design and high light output make Light StripzT an ideal LED solution for retrofit or state-of-the-art lighting applications.

American Illumination also offers custom design services to create light engines for unique luminaires and specialty applications. For samples or additional information on the Light StripzT, contact American Illumination at (310) 202-6500 or visit http://www.American-Illumination.com.
