Formax FD 6404-Standard 5F Inserter Now Shipping

Formax FD 6404-Standard 5F Inserter has been released and is now shipping immediately.

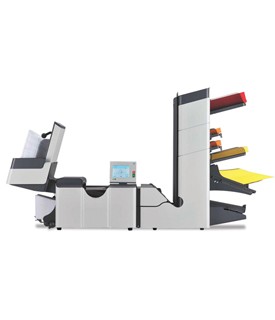

Formax FD 6404-Standard 5F Inserter
Formax FD 6404-Standard 5F Inserter
  • Formax FD 6404-Standard 5F Inserter
    Formax FD 6404-Standard 5F Inserter
    Formax FD 6404-Standard 5F Inserter
    Formax FD 6404-Standard 5F Inserter

All Formax FD 6404 Inserters include pre-sale support to verify the correct machine for the customers applications & have technician on-site, 90 Day Parts warranty and also include installation and training. The versatile 6404 Series adapts to most any folding and inserting application. Models are available with 2 - 6 stations, offering the flexibility to meet your specific needs. A variety of input configurations include a high-capacity document feeder for up to 725 sheets, 1 or 2 high-capacity production feeders, standard and special feeders, and short feed trays. The 6404 Series is capable of folding and inserting top, middle and bottom-address documents into top-flap envelopes. Standard features include a full-color touchscreen control panel, a large output stacker which can hold up to 500 filled envelopes, and a large top-loading envelope hopper with a capacity of up to 325 envelopes. Envelope sealing is made simpler with the ability to set the seal/non-seal feature in programmed jobs, plus a water level detection alert is located right on the control panel. The 6404 Series also offers energy savings with its auto standby mode, which goes into effect after 1 hour of idle time. Options include Barcode Recognition (BCR), Optical Mark Recognition (OMR), a variety of output choices, cabinets and 402 Series Joggers. FLEXIBLE:: The 6404 Series is available with 2 - 6 feeders to meet your changing business demands. Documents up to 14” long, including checks, invoices and reply envelopes, can be inserted in almost any combination. It has the capacity to fold and insert top, middle and bottom-address documents into top-flap envelopes**, plus, special feeders are capable of handling glossy or thicker stock. The 6404 Series has a high-capacity output stacker, which holds up to 500 filled envelopes in their original order. One or two optional production feeders provide the ability to feed up to 325 BREs or 1,200 sheets each or a combined input of up to 750 BREs or 2,400 sheets. Additional configurations include a high-capacity document feeder for up to 725 sheets, a side exit tray for up to 500 envelopes, standard and special feeders, and OMR/BCR capabilities. POWERFUL:: The 6404 Series processes up to 4,000 envelopes per hour, producing up to 60,000 finished pieces per month. The powerful system folds up to 10 sheets in half-fold and up to 8 sheets in tri-fold mode. Each standard feeder holds up to 325 sheets, with a cascade mode to maximize output by connecting multiple feeders filled with the same document. When one feeder empties, the next automatically starts feeding, for a total capacity of up to 1,950 sheets. The top-loading envelope hopper holds up to 325 envelopes, while the large output stacker and side exit tray each hold up to 500 filled envelopes. SECURE: Double document detectors are located at the feeder and the insertion area to ensure that no double documents are fed into the system. The 6404 Series utilizes electromechanical detectors which can operate with any print density, paper color, thickness or paper dust. Documents requiring inspection or special handling can be diverted automatically into the divert station, without interruption. Optional Barcode Recognition (BCR) and Optical Mark Recognition (OMR) features allow for the automatic insertion of multiple-page documents, eliminating the tedious task of manually collating and inserting. SIMPLE & ENERGY EFFICIENT: The color touchscreen control panel is easy to use, and features a flip-down display that can be used from either side of the inserter. With the AutoSetTM feature, all adjustments such as fold type, fold length, envelope size, paper length, and double-document detection are set automatically; simply load the material and go. Operators can program up to 25 jobs, including the option of sealing envelopes. The top-loading envelope hopper and feeder cascade mode maximize operator efficiency and increase output. The energy saving feature automatically puts the inserter into standby mode after 1 hour of being idle. Double-document detector for exceptional security. Diverter: Sensors redirect double documents and incomplete sets without interruption. Folds up to 10 sheets of paper (half-fold) and up to 8 sheets (tri-fold). Inserts into envelopes up to 6.3" H x 9.7" W. Folds/inserts top, middle and bottom address documents into top flap envelopes. Folds and/or inserts sheets, business reply envelopes and cards automatically. Multi-feeding: Allows for a set number of pieces to be pulled from one feeder, then collated and inserted automatically. Daily Mail mode for inserting stapled sets. Bottom-address documents can be processed only in Half and Z-fold modes, up to 5 sheets.

Quick Overview

 * FD 6404-Standard 5F Inserter
 * Five Station with 4 Standard Feeders and 1 High Capacity Document Feeder
 * Full-color 5.7" touchscreen control panel
 * Water level detection alert
 * AutoSetTM: One-touch set-up
 * Automatic envelope sealing option
 * Energy-saving automatic standby mode after 1 hr
 * UL & CE Certified for safety

Additional Information

Manufactured In     USA
Manufacturer     Formax
Manuf Part #     FD 6404-Standard 5F
Model     FD 6404-Standard 5F
Expected Ship Date     1-3 Days
Weight     242.0000
Dimensions     72” L x 36.5” H x 16.5” D (four-station models)
Warranty     90-Day Parts
Color     Grey
Speed (sheets/minute)     66 sheets/min; Up to 4,000 pieces per hour, #10 envelopes
Fold Types     C-Fold, Double Parallel, Half-Fold, Z-Fold
Paper Feed Type     Automatic
Sheet Feeders     5
Paper Input Capacity     Up to 325 sheets, 20# paper (each feeder)
Accepted Paper Types     Non-Glossy
Accepted Paper Weights     20# paper; 10# envelopes
Minimum Paper Size     3.5” L x 5.1” W
Maximum Paper Size     14" L x 9" W
Envelope Input Capacity     Up to 325 envelopes, top-loading
Minimum Envelope Size     6.3” W x 3.5” H
Maximum Envelope Size     9.7" W x 6.3" H
Inserts/BRE's     Up to 325 BREs with optional production feeder
Programmable     Yes
Duty Cycle (pieces/month)     Up to 60,000 pieces per month
Counter     Yes
Voltage     100 - 120v (Standard)
Special Info     Made in USA
